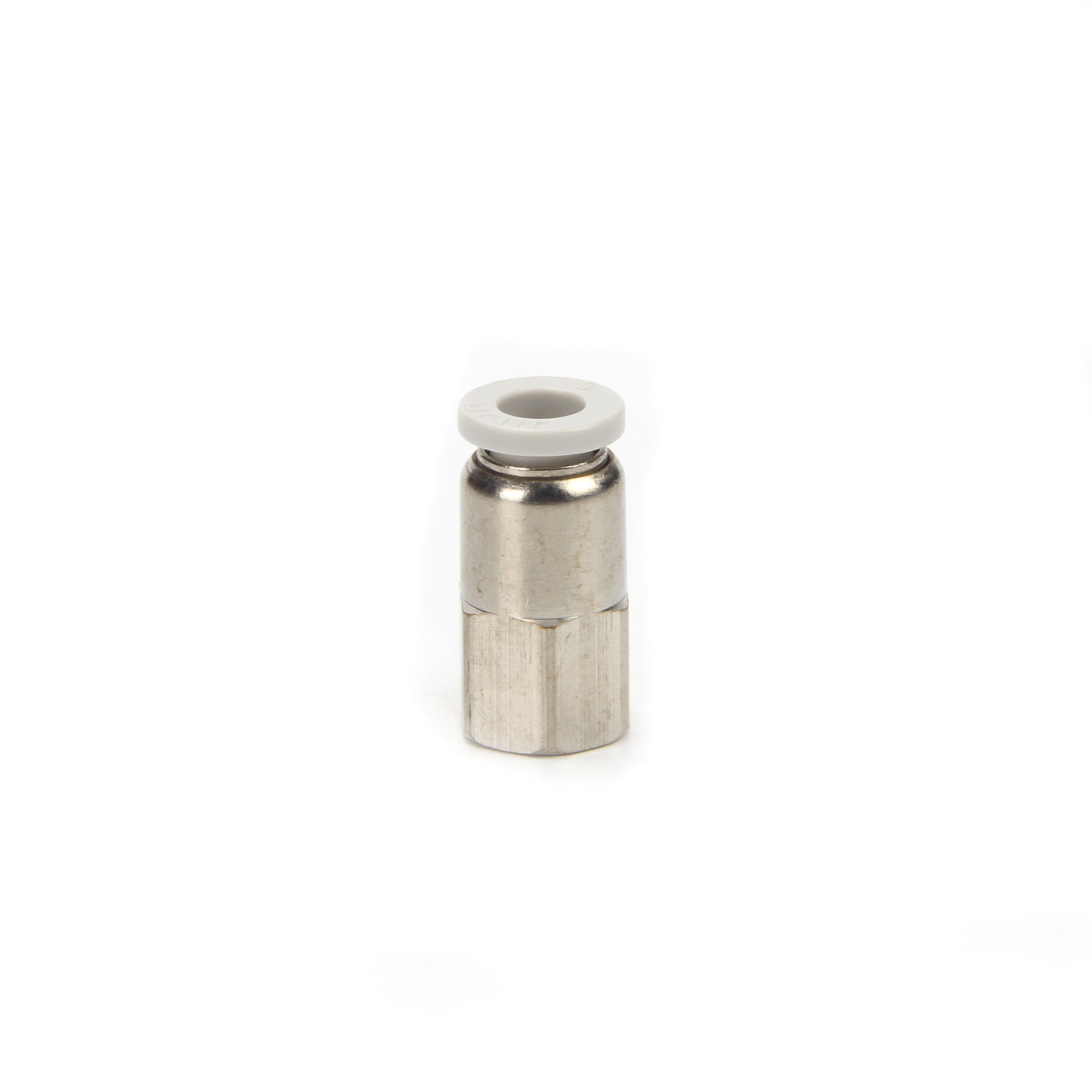

PCF內螺紋直通快速接頭
PCF內螺紋直通氣動(dòng)快速接頭PCF4/6/8/10/12/14/16-M5/01/02/03/04
訂購代號
規格參數
PCF4-M5
PCF4-01
PCF4-02
PCF4-03
PCF6-M5
PCF6-01
PCF6-02
PCF6-03
PCF6-04
PCF8-M5
PCF8-01
PCF8-02
PCF8-03
PCF8-04
PCF10-01
PCF10-02
PCF10-03
PCF10-04
PCF12-01
PCF12-02
PCF12-03
PCF12-04
PCF14-03
PCF14-04
PCF16-03
PCF16-04
流體介質(zhì)
1.32Mpa(13.5kgf/cm2)
0~0.9Mpa(0~9.2kgf/cm2)
-99.99~0Mpa(-750~0mmHg)
溫度
0℃~60℃
適用氣管
螺紋尺寸
M5,1/8”,1/4”,3/8”,1/2”
型號
空氣
最大壓力
壓力范圍
標準壓力
低壓
PU氣管/尼龍管
本體材質(zhì)
黃銅

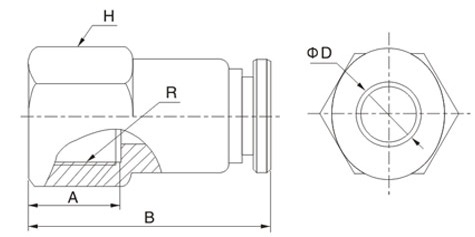

尺寸
|
英制插管 |
公制插管 |
φD |
R |
A |
B |
H |
|
PCF5/32-M5 |
PCF4-M5 |
4 |
M5 |
6 |
24 |
10 |
|
PCF5/32-01 |
PCF4-01 |
4 |
G1/8 |
9 |
27 |
12 |
|
PCF5/32-02 |
PCF4-02 |
4 |
G1/4 |
11 |
29 |
15 |
|
PCF1/4-M5 |
PCF6-M5 |
6 |
M5 |
6 |
24 |
12 |
|
PCF1/4-01 |
PCF6-01 |
6 |
G1/8 |
9 |
28.5 |
12 |
|
PCF1/4-02 |
PCF6-02 |
6 |
G1/4 |
11 |
31 |
15 |
|
PCF1/4-03 |
PCF6-03 |
6 |
G3/8 |
12.5 |
31 |
19 |
|
PCF1/4-04 |
PCF6-04 |
6 |
G1/2 |
12.5 |
32 |
24 |
|
PCF5/16-01 |
PCF8-01 |
8 |
G1/8 |
9 |
29 |
14 |
|
PCF5/16-02 |
PCF8-02 |
8 |
G1/4 |
11 |
31 |
15 |
|
PCF5/16-03 |
PCF8-03 |
8 |
G3/8 |
12.5 |
32 |
19 |
|
PCF5/16-04 |
PCF8-04 |
8 |
G1/2 |
12.5 |
33 |
24 |
|
PCF3/8-01 |
PCF10-01 |
10 |
G1/8 |
9 |
33.5 |
17 |
|
PCF3/8-02 |
PCF10-02 |
10 |
G1/4 |
11 |
35 |
17 |
|
PCF3/8-03 |
PCF10-03 |
10 |
G3/8 |
12.5 |
35.5 |
19 |
|
PCF3/8-04 |
PCF10-04 |
10 |
G1/2 |
12.5 |
36.5 |
24 |
|
PCF1/2-01 |
PCF12-01 |
12 |
G1/8 |
9 |
33.5 |
19 |
|
PCF1/2-02 |
PCF12-02 |
12 |
G1/4 |
11 |
35.5 |
19 |
|
PCF1/2-03 |
PCF12-03 |
12 |
G3/8 |
12.5 |
36 |
19 |
|
PCF1/2-04 |
PCF12-04 |
12 |
G1/2 |
12.5 |
37 |
24 |
|
- |
PCF14-03 |
14 |
G3/8 |
12.5 |
37.5 |
24 |
|
- |
PCF14-04 |
14 |
G1/2 |
12.5 |
37.5 |
24 |
|
- |
PCF16-03 |
16 |
G3/8 |
14 |
45.5 |
24 |
|
- |
PCF16-04 |
16 |
G1/2 |
16 |
47.5 |
24 |
