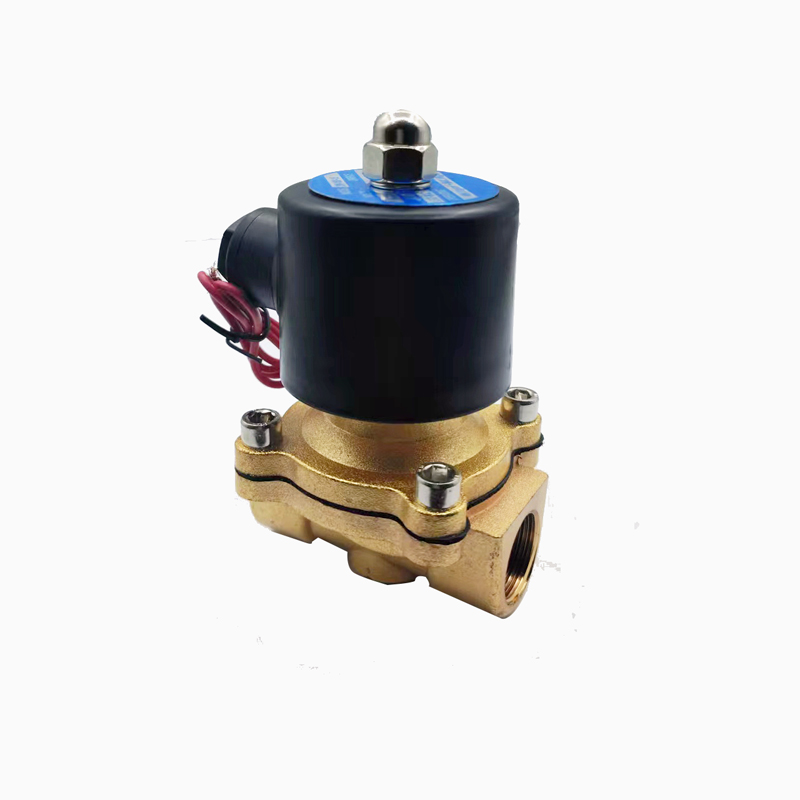

2W series 24V DC/220V AC normally closed direct acting brass water solenoid valve

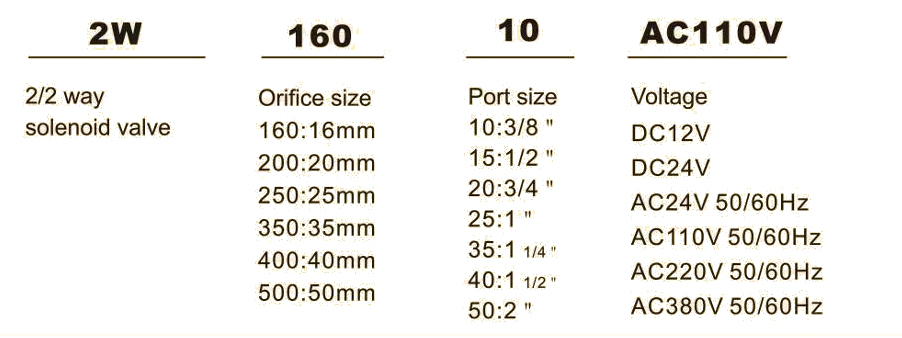

Order code

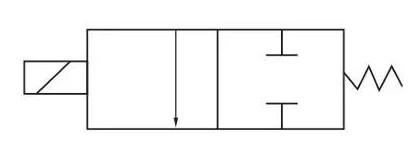

Symbol

Technical parameter

Normally closed brass electric solenoid valve
Model	2W160-10	2W160-15	2W200-20	2W250-25	2W350-35	2W400-40	2W500-50
Working medium	Air, water, oil, gas
Motion pattern	Direct acting Type
Type	Normal Closed Type			Normal Open Type
Orifice(mm)	16	16	20	25	35	40	50
CV	4.8	4.8	7.6	12	24	29	48
Pipe size	3/8"	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"
Material of valve body	Brass water valve
Operation fluid viscosity	20 CST(below)
Working pressure	Water: 0~5 bar, Air: 0~5, Gas:0~7
Max. pressure	10.5 bar
Temperature	-5~80 degrees centigrade
Material of Oil Seal	NBR, EPDM or VITON

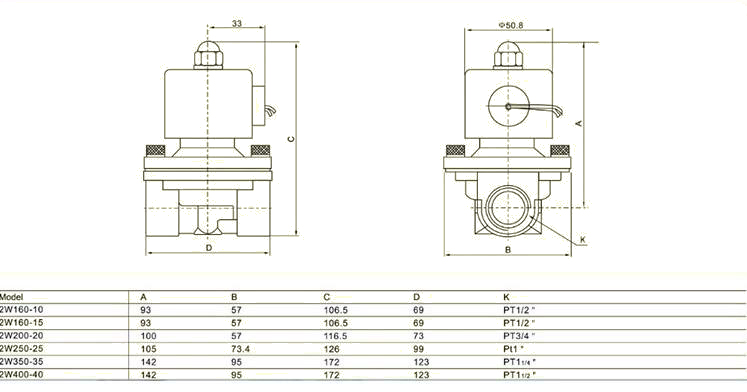

Dimension
