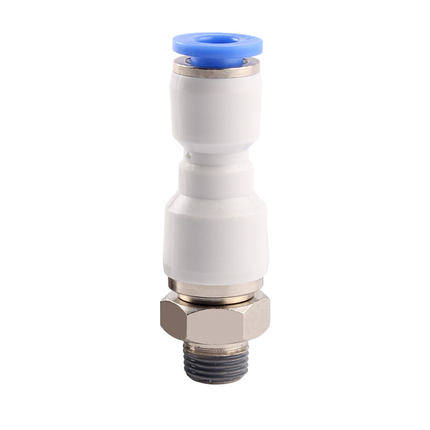

NRC series pneumatic fittings
NRC high speed rotation straight pneumatic fittings air hose quick connect air fittings one touch pneumatic fittings
Order code
Technical parameter
|
Model |
NRC4-M5 NRC4-M6 NRC4-01
|
NRC6-M5 NRC6-M6 NRC6-01 NRC6-02
|
NRC8-01 NRC8-02 NRC8-03 |
NRC10-02 NRC10-03 NRC10-04 |
NRC12-03 NRC12-04 |
|
|
Fluid |
Air |
|||||
|
Max. Pressure |
1.32Mpa(13.5kgf/cm2) |
|||||
|
Pressure range |
Normal pressure |
0~0.9Mpa(0~9.2kgf/cm2) |
||||
|
Low pressure |
-99.99~0Mpa(-750~0mmHg) |
|||||
|
Temperature |
0℃~60℃ |
|||||
|
Applicable tube |
PU/Nylon tube |
|||||
|
Thread size |
M5,M6,1/8”,1/4”,3/8”,1/2” |
|||||
|
Material of body |
Brass |
|||||
|
Outer size |
Metric Type |
Thread |
H |
D1 |
D2 |
L |
M |
|
Φ4 |
NRC4-M5 (KSH04-M5) |
M5*0.8 |
8 |
10.4 |
21 |
36.5 |
16 |
|
NRC4-M6 (KSH04-M6) |
M6*1.0 |
37 |
|||||
|
NRC4-01 (KSH04-01S) |
1/8 |
12 |
38 |
||||
|
Φ6 |
NRC6-M5 (KSH06-M5) |
M5*0.8 |
8 |
12.8 |
14 |
37.5 |
17 |
|
NRC6-M6 (KSH06-M6) |
M6*1.0 |
38 |
|||||
|
NRC6-01 (KSH06-01S) |
1/8 |
14 |
39.5 |
||||
|
NRC6-02 (KSH06-02S) |
1/4 |
42.5 |
|||||
|
Φ8 |
NRC8-01 (KSH08-01S) |
1/8 |
17 |
15.2 |
17 |
44 |
18.5 |
|
NRC8-02 (KSH08-02S) |
1/4 |
47 |
|||||
|
NRC8-03 (KSH08-03S) |
3/8 |
48 |
|||||
|
Φ10 |
NRC10-02 (KSH10-02S) |
1/4 |
22 |
18.5 |
22 |
54 |
21 |
|
NRC10-03 (KSH10-03S) |
3/8 |
55 |
|||||
|
NRC10-04 (KSH10-04S) |
1/2 |
57.5 |
|||||
|
Φ12 |
NRC12-03 (KSH12-03S) |
3/8 |
24 |
20.9 |
24 |
57 |
22 |
|
NRC12-04 (KSH12-04S) |
1/2 |
60 |
Feature:
NRC high speed rotation straight pneumatic fittings air hose quick connect air fittings one touch pneumatic fittings could be Quick installation, simple and flexible,space-saving.
NRC rotary joint threaded straight pipe NRC6/10/12-01/02 fast universal high speed pneumatic joint,widely used in industries automatic production equipment like machinery, electronics, automobile and packaging.
